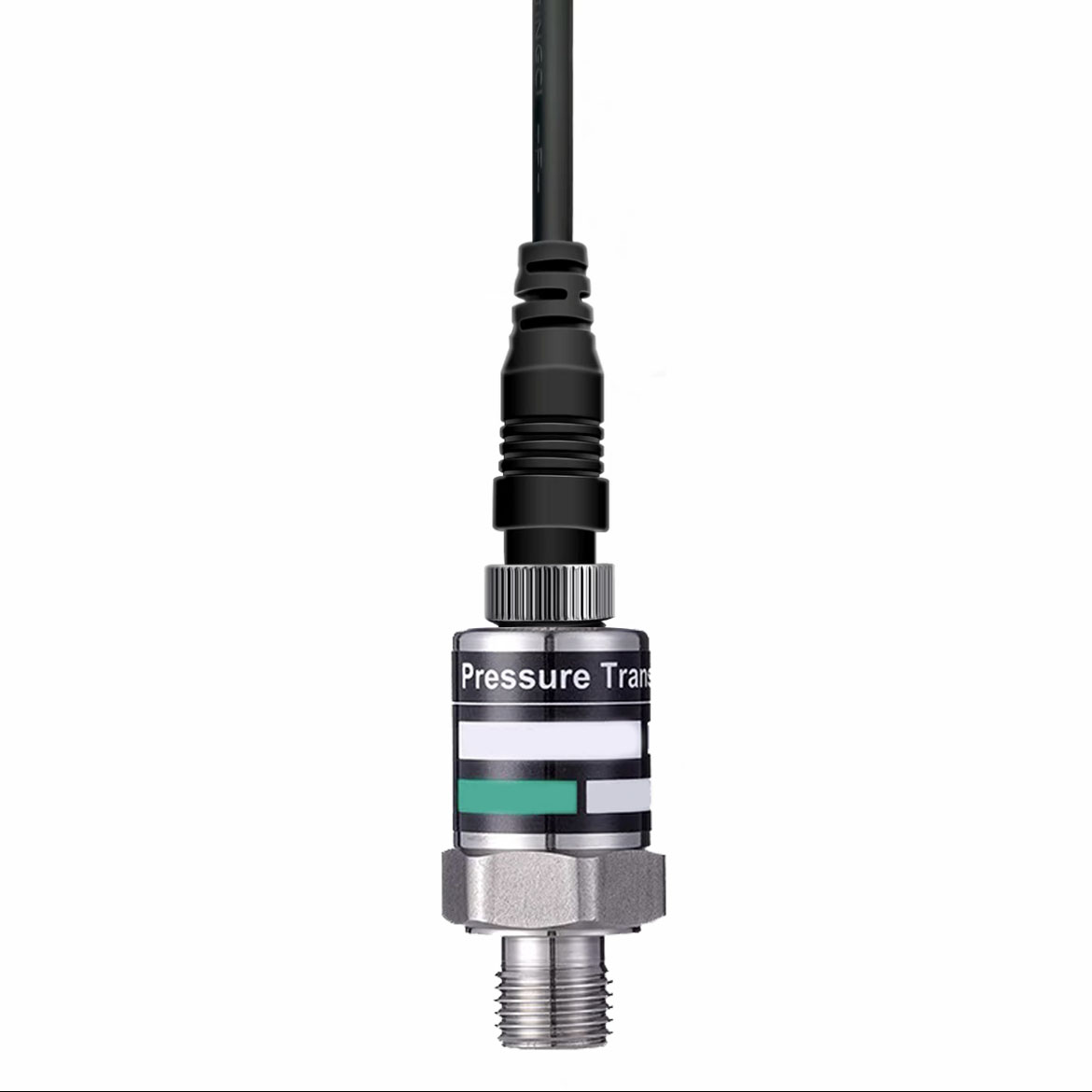

A resistive output pressure sensor for pumps is a sensor used to measure the pressure of fluids (liquids or gases), with its output signal represented by changes in resistance. Here are some key aspects of this type of sensor:

Working Principle

1. Resistive Strain Gauge: This sensor typically uses a resistive strain gauge as the primary sensing element. When pressure is applied, the strain gauge deforms, causing its resistance to change.

2. Wheatstone Bridge: The change in resistance is converted into a voltage signal using a Wheatstone bridge circuit, which effectively detects small resistance changes.

Features

- High Accuracy: Capable of accurately measuring small pressure changes.

- Fast Response: Responds quickly to changes in pressure.

- Simple Structure: Typically has a simple design, making it easy to integrate and maintain.

- Durability: Performs well in high-pressure and vibrational environments.

Applications

- Industrial Pump Systems: Used to monitor and regulate the working pressure of pumps, ensuring system safety and efficiency.

- Automotive Industry: Used for monitoring oil and air pressure in engines and brake systems.

- Household Appliances: Employed in devices like washing machines for water level monitoring and coffee makers for pressure control.

Maintenance and Selection

- Select Appropriate Range: Choose a suitable pressure range based on the application environment and requirements to ensure optimal sensor performance.

- Regular Calibration: Regular calibration is necessary to maintain accuracy.

- Environmental Adaptability: Choose materials that are resistant to high temperatures and corrosion to suit different working environments.

This type of sensor helps achieve precise control and monitoring of pressure within a system by converting physical pressure changes into resistance signals.
