current output type pressure sensor transmitter jienlu
Brand: jienlu
Range: 0 to 4MPa (0~40bar)、6bar、10bar、16bar、20bar、25bar、40bar
Sensor: High-quality Chinese chip/imported diffusion silicon chip
Temperature: -25℃ to 60℃
Power supply voltage: 24VDC
Overload pressure: 500%FS
Temperature drift: ±0.5%FS/℃
Thread: G1/4, G1/2, M20*1.5, etc. Customizable
Lifespan: Market verification of 5 to 10 years (depending on the usage environment)
Output: Voltage output type
Features: Corrosion resistance, durability, wear resistance, high accuracy, high stability, water hammer resistance, etc.
Protection level: IP67
Housing: 304 stainless steel
Default cable length: 2m (other lengths customizable)
Style: Elbow, straight
Electrical connection: Lead wire, terminal, etc.
Type: 2-wire (current type), 3-wire (voltage type)
Note: For more details, please consult customer service
Certification: CE

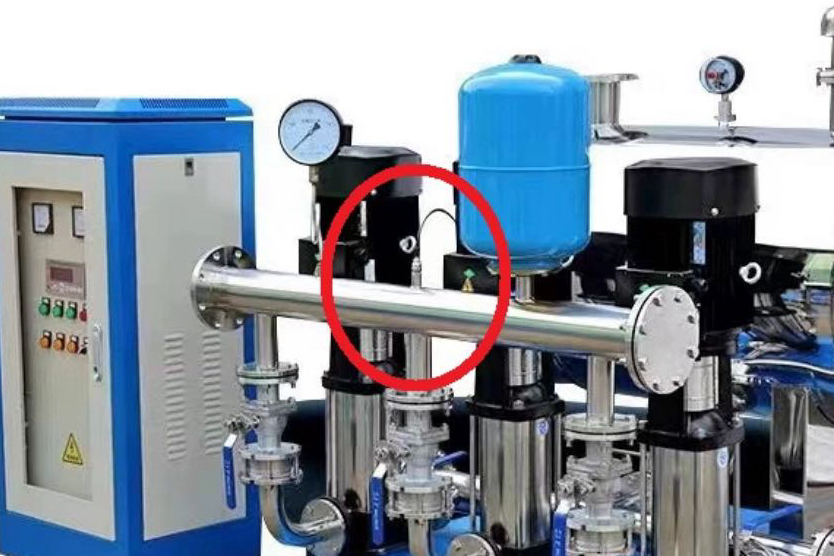

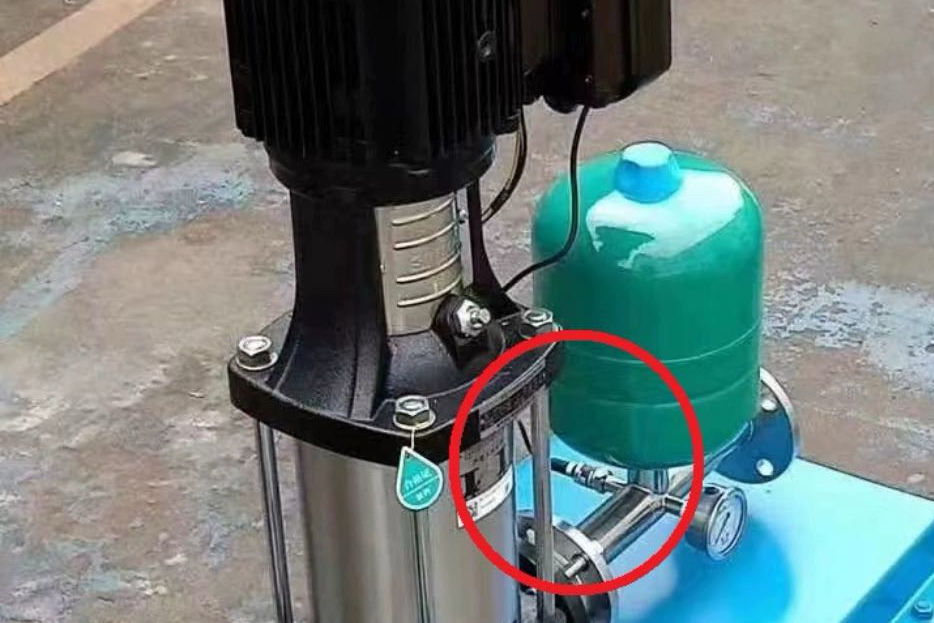

Widely used in household water pumps, etc.
Current output pressure sensors offer the following performance advantages:
1. Signal Stability: Current output sensors typically provide a 4-20 mA standard signal, which is less affected by cable length and electromagnetic interference, ensuring stable and accurate signal transmission.
2. Remote Transmission: Current signals can be transmitted over longer distances without loss of stability, allowing the sensor to be located far from the display and control systems while maintaining reliable signal transmission.
3. Strong Anti-Interference Capability: Current signals are less susceptible to electromagnetic interference and noise, giving current output sensors strong anti-interference capabilities, making them suitable for complex environments.
4. Simple Installation and Maintenance: Current output sensors are generally designed to be straightforward, making installation and maintenance easier, which reduces system complexity and maintenance costs.
5. High Accuracy and Reliability: These sensors typically offer high measurement accuracy and long-term stability, providing reliable data output.
These advantages make current output pressure sensors widely used in industrial automation, process control, and monitoring systems.
