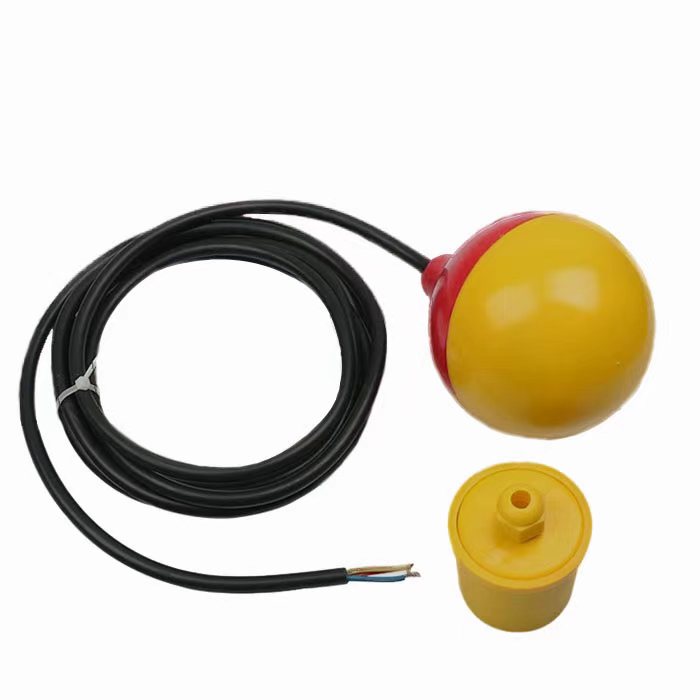

Float Level Switch Controller jienlu
Brand: jienlu
Specifications: 2m/3m/5m/6m/7m/10m/15m/20m (customizable)
Rated voltage: 0~250V AC/DC universal (AC 380V can be used with AC contactor)
Rated current: 4A,5A,10A,16A220V250V(customizable)
Copper wire diameter: 0.4mm² to 1mm²
Power range: Below 1100W (power exceeding this range requires an AC contactor)
Temperature: Standard version -20°C to 60°C, high-temperature version -25°C to 85°C.
Casing: ABS/PP
Cable sheath: CPE/PVC (customizable)
Microswitch: ORM/Made in China
Features: Corrosion-resistant, high quality, durable, high control accuracy, etc.
Service life: 10,000 cycles～100,000 cycles
Control range: >0.3m
Protection level: IP68
Note: For more details, please consult customer service.
Certification: CE/EAC
The advantages and performance characteristics of the high buoyancy liquid level float switch for sewage mainly include the following aspects:
1. High Sensitivity: This float switch can quickly respond to changes in liquid levels, ensuring timely control of the sewage pump’s start and stop, thereby preventing sewage overflow or dry running.
2. Strong Stability: Made from corrosion-resistant materials, it is suitable for harsh sewage environments and has good durability and stability.
3. Easy Installation: The design is simple and easy to install, usually requiring only fixation at an appropriate position without complex debugging.
4. Wide Adaptability: It can be used for different types of sewage, including sewage with solid impurities, and the float design effectively prevents clogging.
5. High Safety: It features waterproof and explosion-proof functions, making it suitable for use in hazardous environments, ensuring the safety of operating personnel.
6. Low Maintenance Cost: Due to its simple and durable structure, it has a low maintenance frequency, which reduces the maintenance costs over long-term use.
These advantages make the high buoyancy liquid level float switch widely used in sewage treatment and liquid level control.
