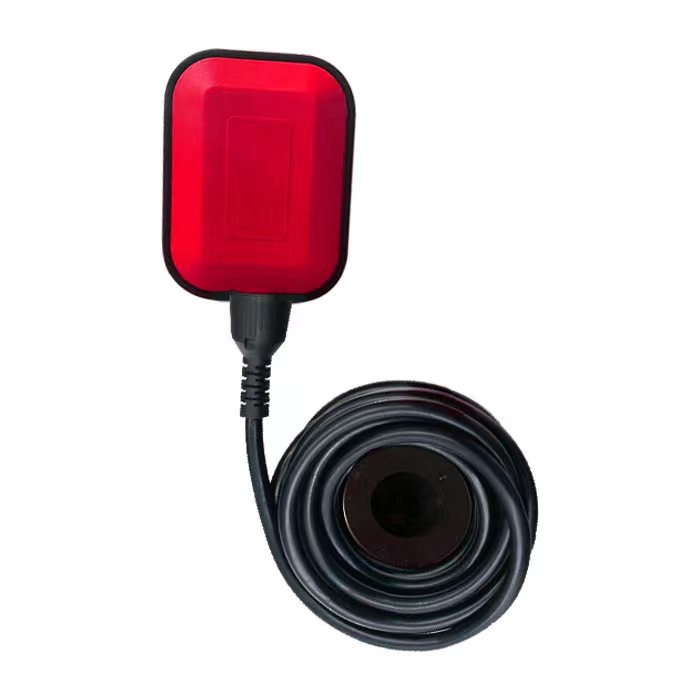

float Level Switch Controller jienlu
Brand: jienlu
Specifications: 2m/3m/5m/6m/7m/10m/15m/20m (customizable)
Rated voltage: 0~250V AC/DC universal (AC 380V can be used with AC contactor)
Rated current: 4A,5A,10,16A @220V(customizable)
Copper wire diameter: 0.4mm² to 1mm²
Power range: Below 1100W (power exceeding this range requires an AC contactor)
Temperature: Standard version -20°C to 60°C, high-temperature version -25°C to 85°C.
Casing: ABS/PP
Cable sheath: CPE/PVC (customizable)
Microswitch: OMR/Made in China
Features: Corrosion-resistant, high quality, durable, high control accuracy, etc.
Service life: 10,000 cycles～100,000 cycles
Control range: >0.3m
Protection level: IP68
Note: For more details, please consult customer service.
Certification: CE/EAC
A cable float level switch is a device used to detect liquid levels, and its superior performance is reflected in the following aspects:
1. Simple and Reliable Design: The float switch has a simple structure, typically consisting of a float, cable, and switch components. This design ensures reliable operation and low failure rates, making it suitable for long-term use.
2. Strong Adaptability: It can be used in various liquid media, including water, oil, and chemical solutions, making it suitable for a wide range of industrial and domestic environments.
3. Durability and Corrosion Resistance: Typically made from corrosion-resistant materials, it can operate in harsh environments, such as high temperatures, strong acids, or strong alkaline conditions.
4. Easy Installation: Thanks to its flexible cable design, the float switch can be easily installed in different tanks or containers without the need for complex tools or techniques.
5. Low Maintenance Requirements: With a simple structure and durable materials, the float switch requires minimal maintenance, reducing downtime and maintenance costs.
6. Multi-Point Control Capability: Some designs allow for monitoring multiple liquid levels within a system, offering more flexible level management solutions.
7. Cost-Effectiveness: Compared to other liquid level detection devices, float switches are generally less expensive and have a long lifespan, making them a cost-effective solution.
These features make cable float level switches an ideal choice for many level detection applications, especially when simple, reliable, and economical solutions are needed.
