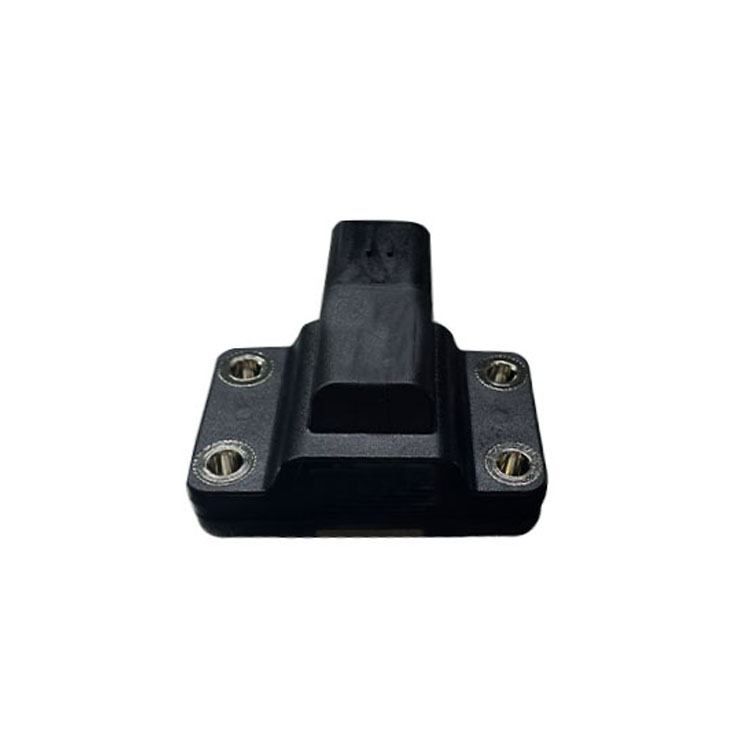

tilt angle sensor module aceinna MTLT335
Brand:aceinna
Product Category: Reinforced Type
Dimensions: 6.5 x 6.6cm
Interface: CAN / RS232
Connector Style: Ampseal 16
Roll/Pitch Accuracy: 0.05deg
Gyroscope Range: 400+/- deg/sec
Gyroscope Bias Stability: 1.3deg/hr
Non-linearity: 0.1%
Acceleration Range: 8+/- g
Sensor Bandwidth: 2 - 50Hz
Output Data Rate: Optional up to 100Hz/200Hz
The MTLT335 is an easy-to-use, high-performance 6-axis IMU featuring a triple-redundant architecture to enhance machine reliability and uptime. It offers full-temperature calibration compensation and advanced calibration algorithms for accurate pitch, roll, 3D acceleration, and 3D angular velocity. The system software is highly compatible. The product is encapsulated in a rugged, sealed overmolded plastic or aluminum housing. The MTLT335 complies with ISO 13849 performance level d (PLd) requirements, and its development process adheres to the design and safety standards outlined in ISO 13849.
An inclinometer is a device used to measure the angle of inclination of an object relative to gravity. They possess several superior features that make them popular in various applications. Here are some of the key advantages of inclinometers:
Superior Features
1. High Accuracy:
- Inclinometers can accurately measure small changes in tilt angle, typically offering high resolution and low error rates.
2. Stability:
- They maintain stable performance over long-term use, with strong anti-interference capabilities, making them suitable for harsh environments.
3. Fast Response:
- These sensors can quickly respond to changes in tilt angle, making them ideal for real-time monitoring applications.
4. Durability:
- Usually designed to be robust, they can withstand mechanical shocks, vibrations, and temperature changes.
5. Low Power Consumption:
- Inclinometers generally have low energy consumption, making them suitable for battery-powered devices and systems.
6. Multi-Axis Measurement:
- Modern inclinometers typically support multi-axis measurement (such as dual-axis or tri-axis), enabling the detection of tilt in multiple directions simultaneously.
Applications
- Construction Machinery: Used to monitor and control the tilt angle of heavy equipment to prevent tipping.
- Building Monitoring: Monitors the structural health of buildings and bridges.
- Consumer Electronics: Used in smartphones and tablets for automatic screen rotation.
- Drones and Robotics: Helps stabilize flight attitudes and movement paths.
- Industrial Automation: Used for angle detection and adjustment in automated equipment.
With these superior features, inclinometers play a crucial role in precise measurement and safety monitoring, and they are widely used across various industries.
