Hydraulic pneumatic pressure sensorcurrent output jienlu
Technical Parameters:
- Bland: jienlu
- Measurement range: -0.1MPa ~ 0 ~ 10MPa (other ranges available on request)
- Output signal: 0.5~4.5VDC, 4~20mA ，485Output options
- Operating temperature: -40°C to 85°C (104°F to 257°F)
- Pressure overload: 2xFSO
- Comprehensive accuracy: ±0.5%FS
- Power supply: 9-33VDC
- Temperature drift: ±0.03%/°C
- Electrical connection: Hirschmann
- Process connection: G1/4, 1/4NPT, R1/4, G1/2, R1/2, and other customizable connections
The actual length is slightly longer after adding the 485 module to the reference dimensions.
Product Description:

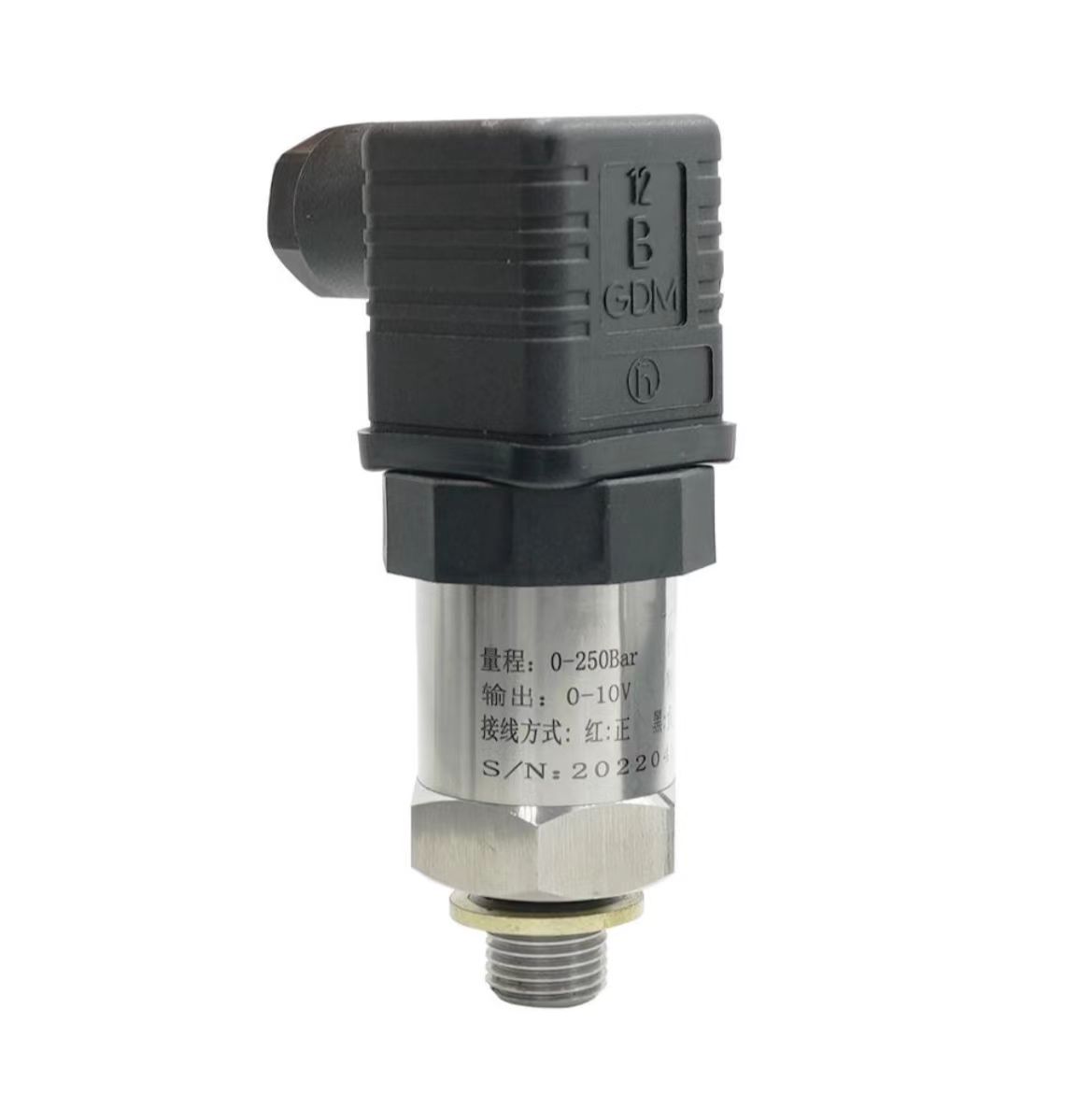

The PT-509 pressure transmitter is a specialized product developed by our company based on industry application needs. It is widely used in fields such as compressors and water pumps with no negative pressure or constant frequency. Using imported pressure sensors, compact form factor, and easy installation. Its excellent electrical performance and long-term stability make it a top choice in the industry, with CE certification. It can directly replace a variety of similar imported products, such as those from HUBA, MSI, and Huba. Customization according to customer requirements in terms of product form factor and process connections is available. Multiple standards are available, and OEM labeling is provided upon request.
Main Features:
- Compact and aesthetically pleasing
design, easy to install, compatible with multiple installation methods.
- Replaceable for most pressure sensor
products on the market, with excellent electrical performance and long-term
stability, and long service life.
- Customization available for different
forms and needs, with OEM labeling services upon request.
